Bosch Motorsport e-throttle 68mm

Bosch Motorsport e-throttle 68mm

£169.99 GBP
£169.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

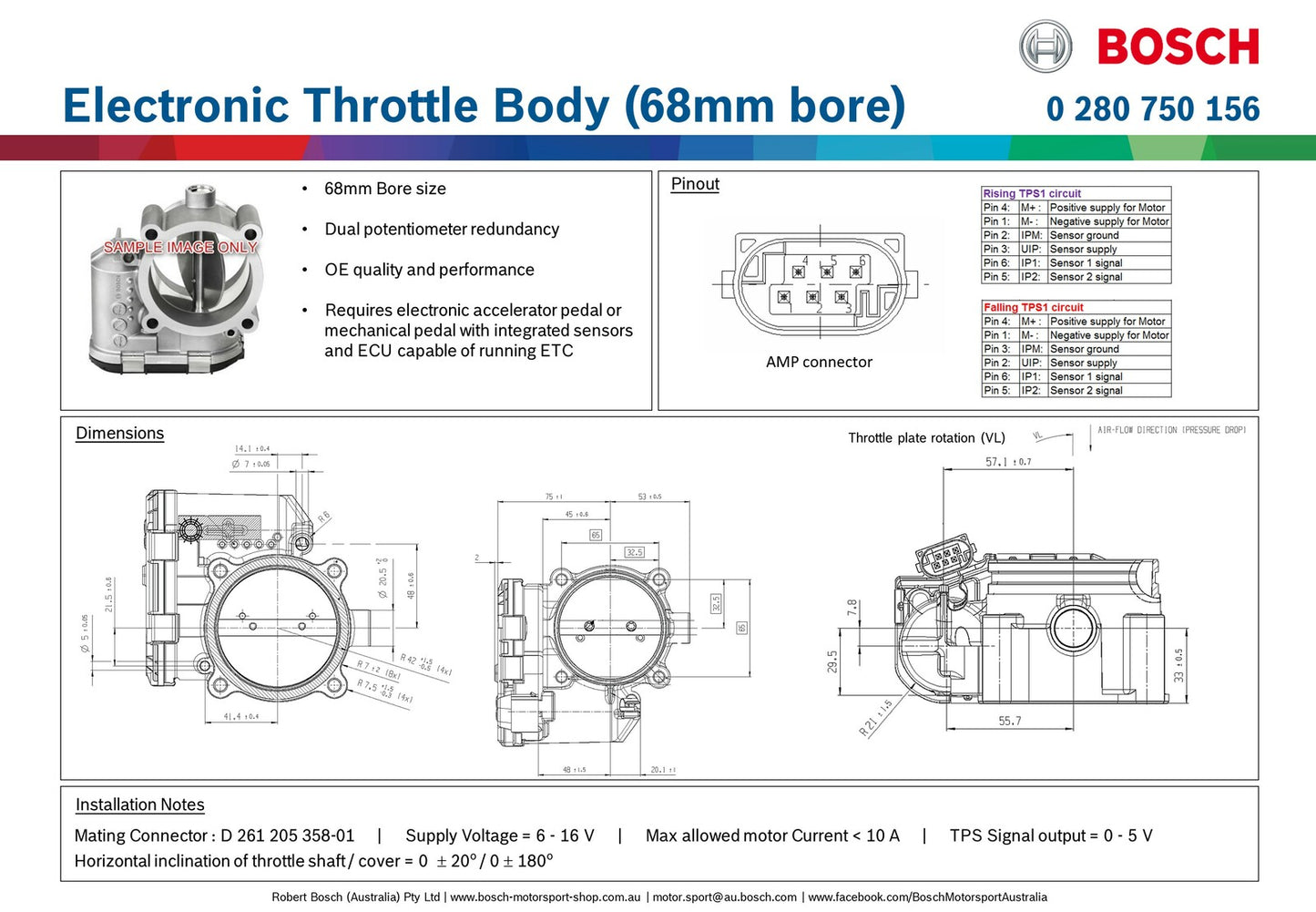

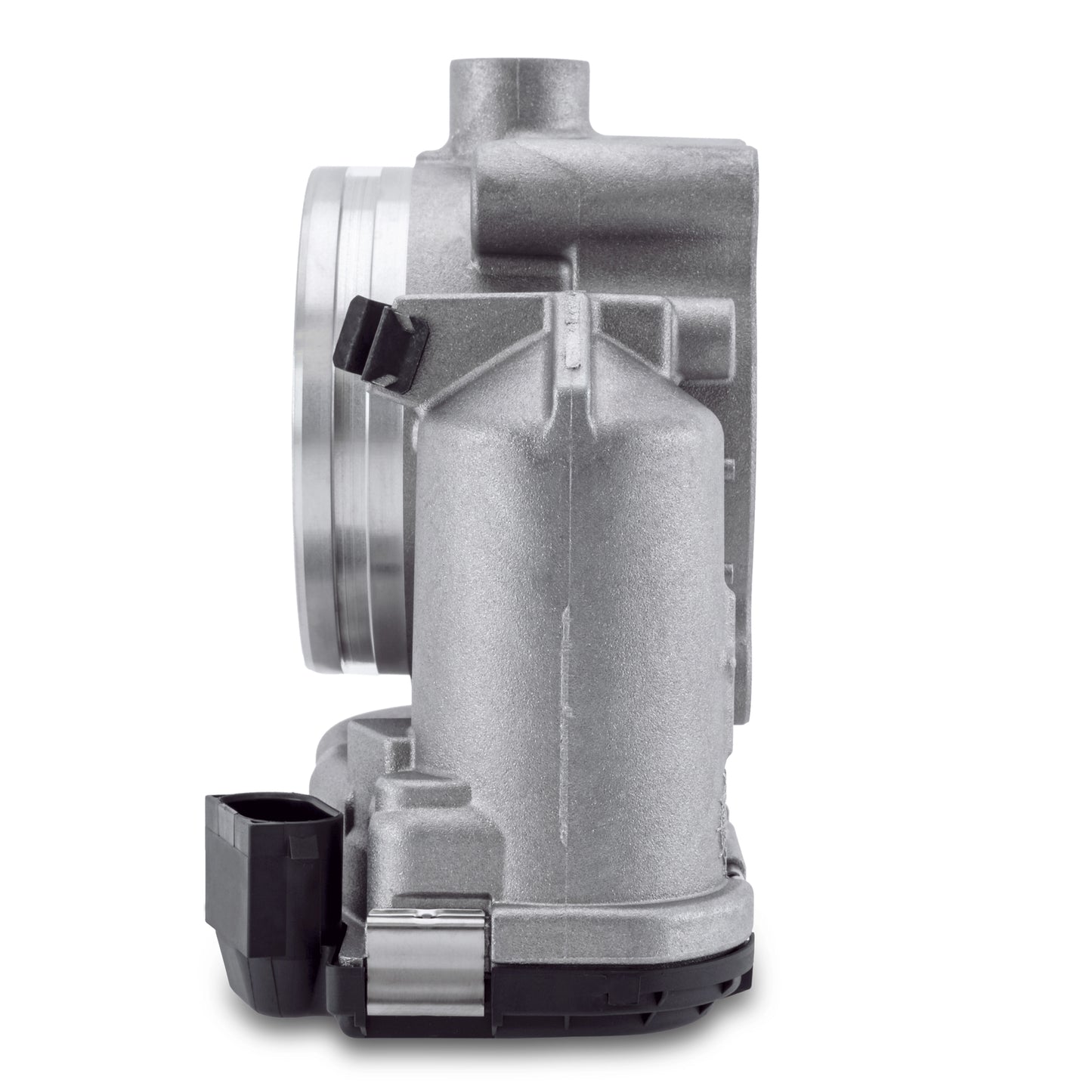

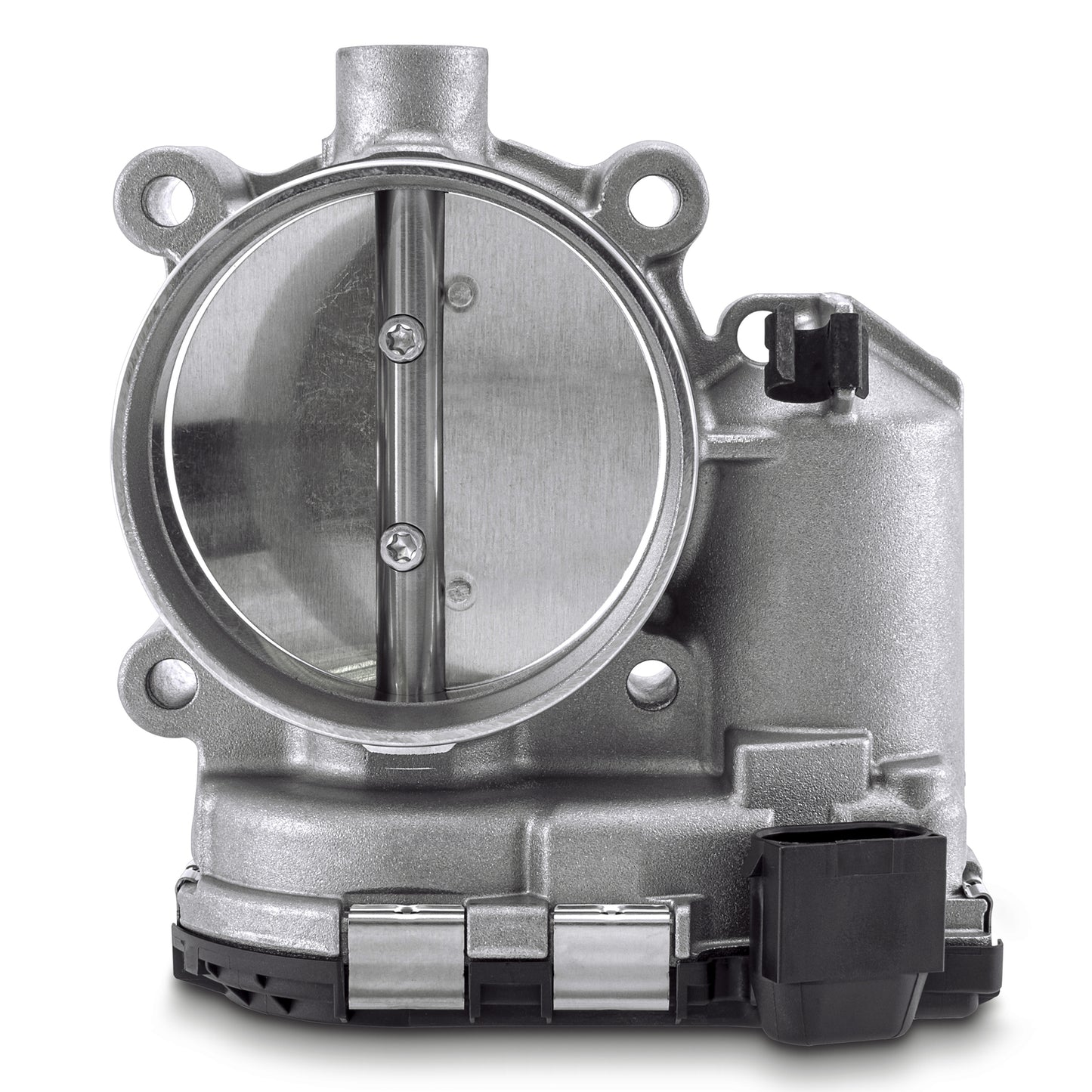

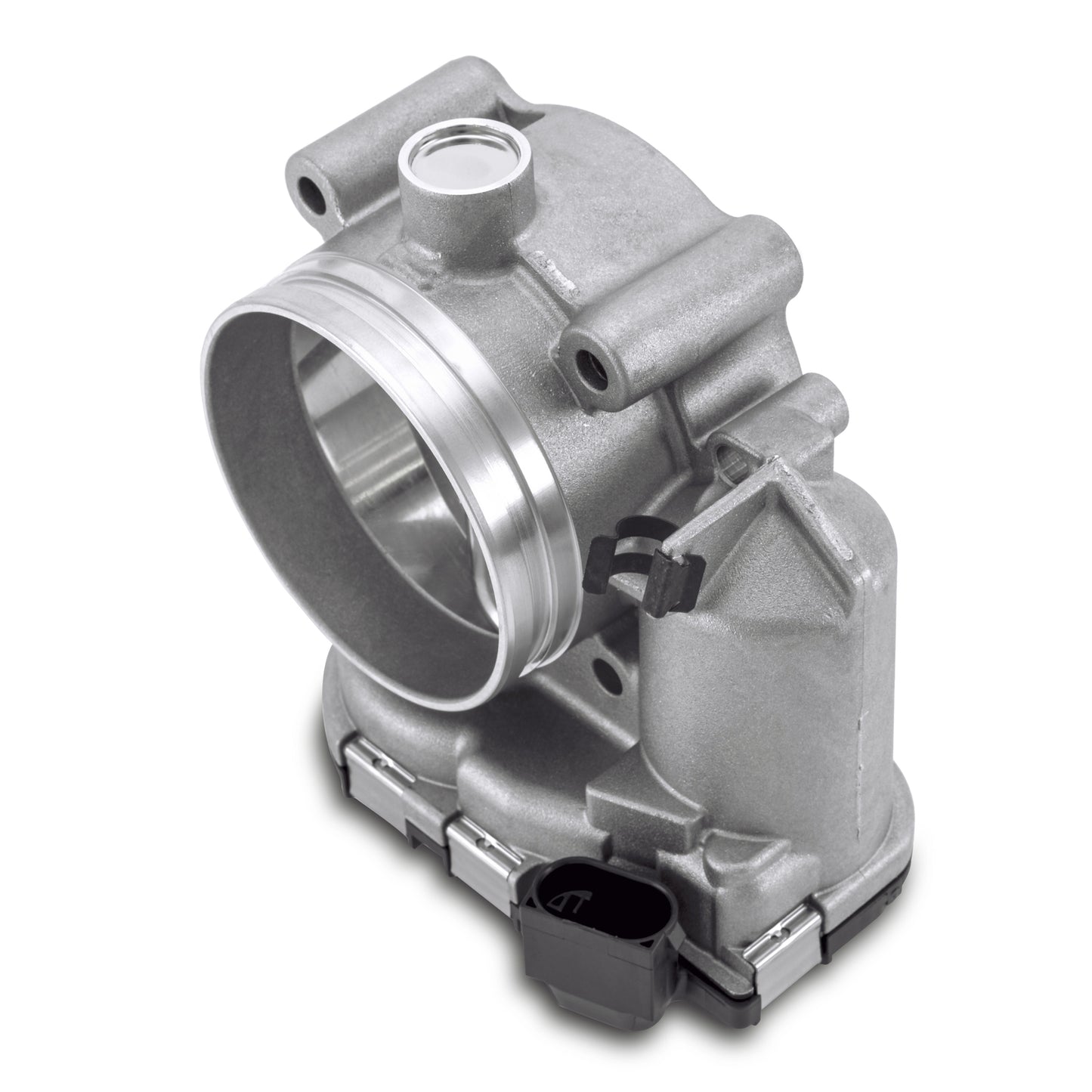

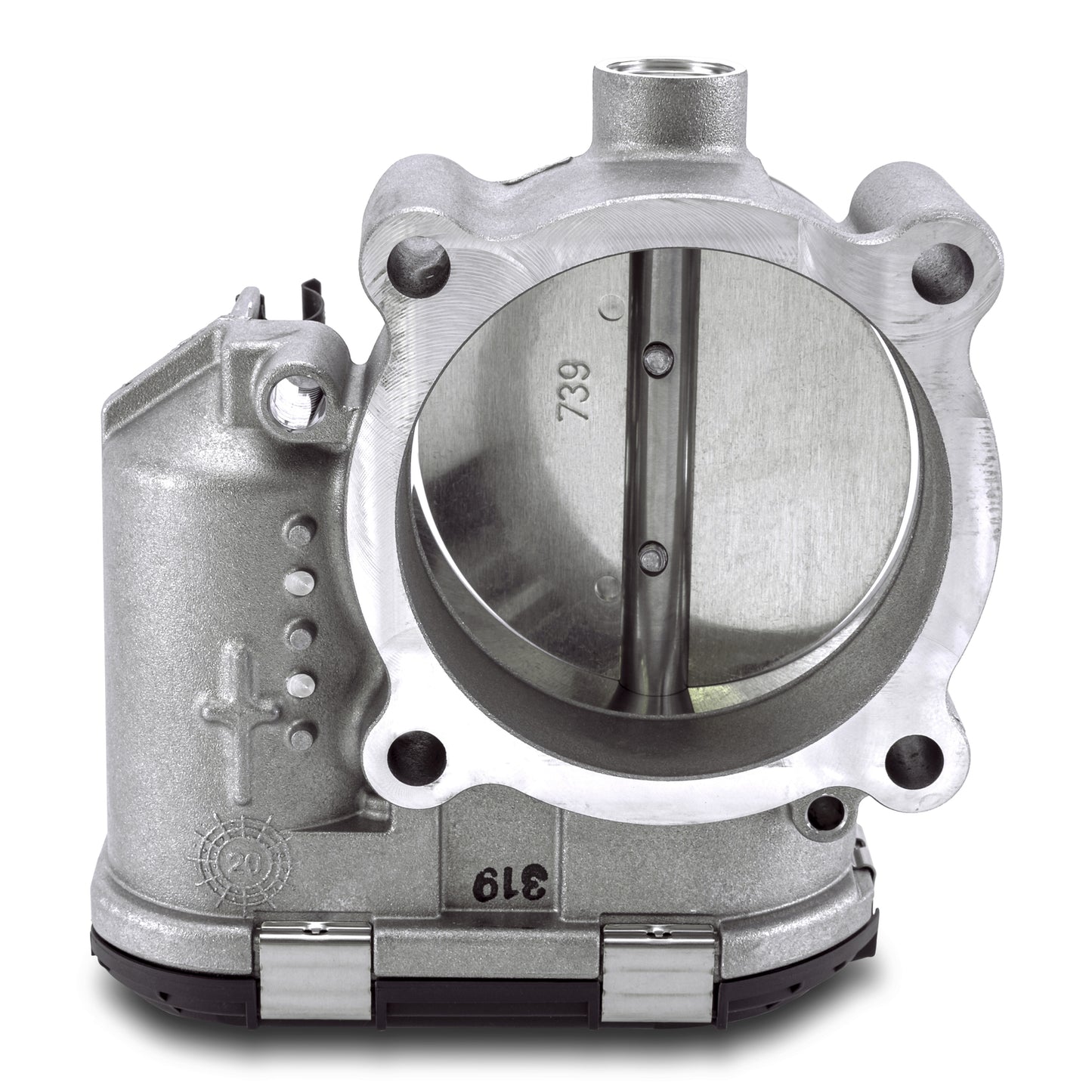

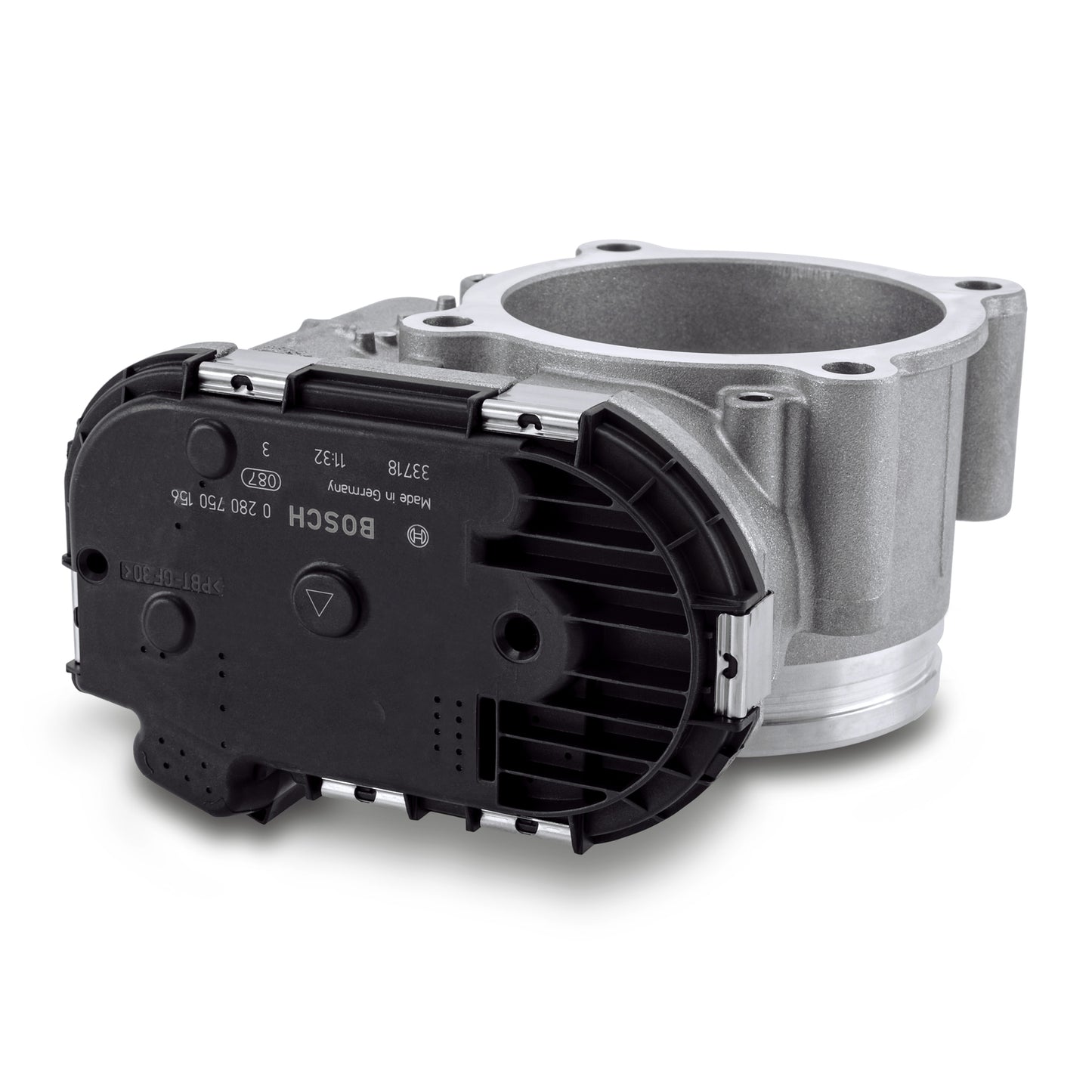

Electronic Throttle Body (68mm bore)

Part no: 0 280 750 156

Description
- 68mm Bore size
- Dual potentiometer redundancy
- OE quality and performance
- Includes groove on inlet port flange
- Use mating connector D 261 205 358-01


Specifications
Application and model suitability:

- Generic use

- Custom applications

- Requires electronic accelerator pedal or mechanical pedal with integrated sensors and ECU capable of running ETC

Pin 1 A - Motor -
Pin 2 B - Pot -
Pin 3 C - Pot +
Pin 4 D - Motor +
Pin 5 E - Pot 2
Pin 6 F - Pot 1

Optional Extras -

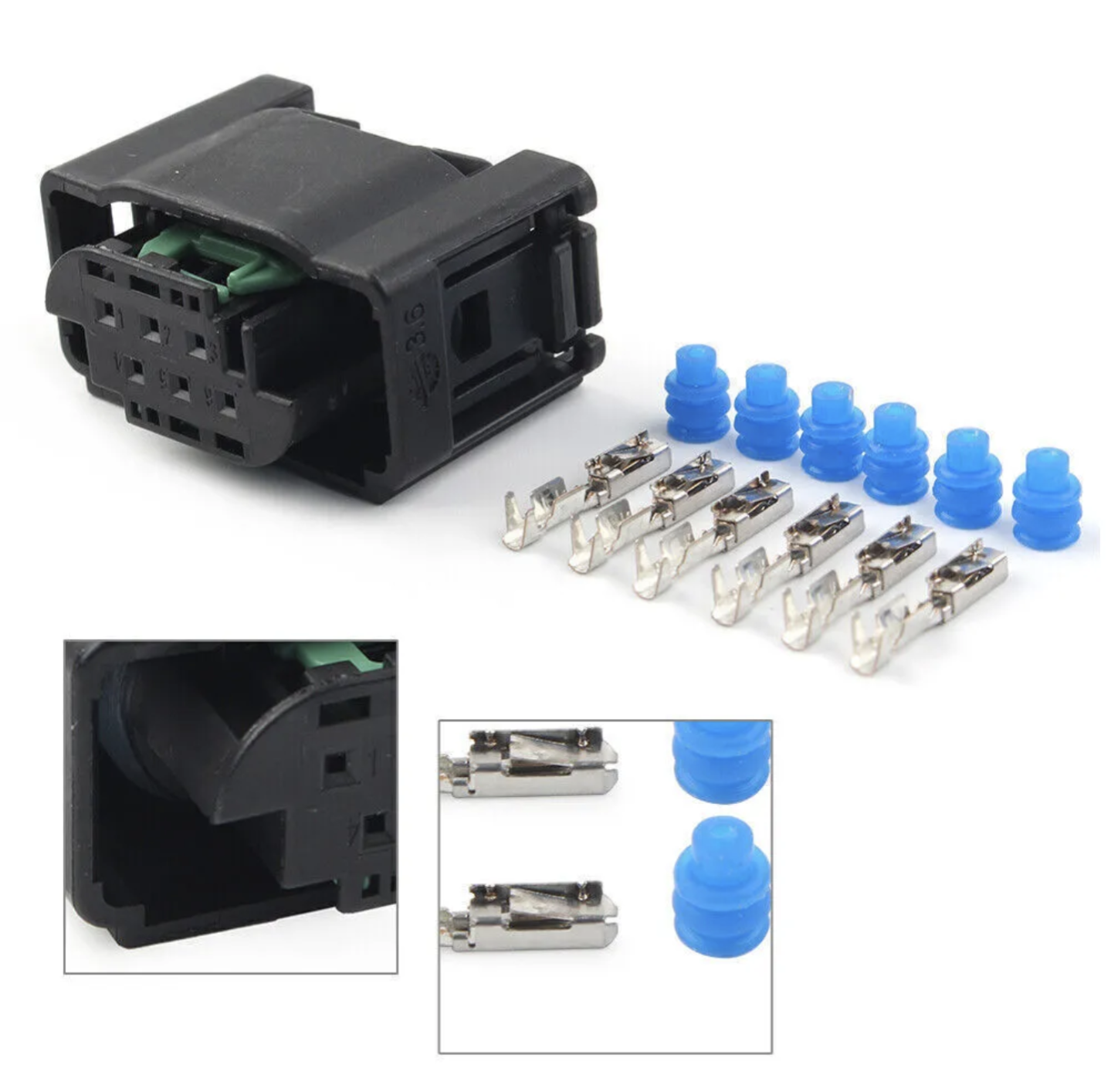

Connector Bosch e-throttle

Description
- Mating connector for electronic throttle, AMP 6-pin

Specifications
Application and model suitability:- Used with Bosch electronic throttle 0 280 750 148, 0 280 750 149, 0 280 750 150, 0 280 750 151, 0 280 750 156, 0 280 750 101, 0 280 750 474

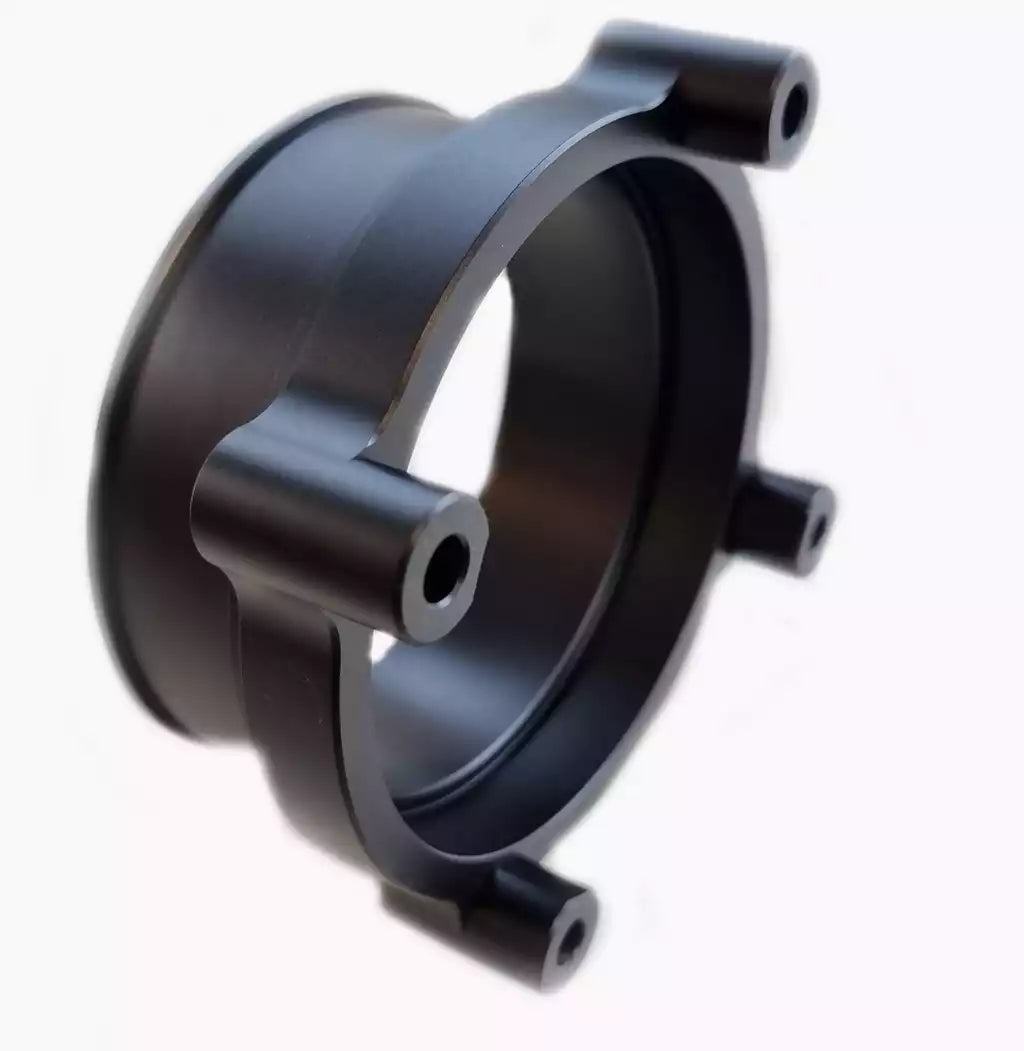

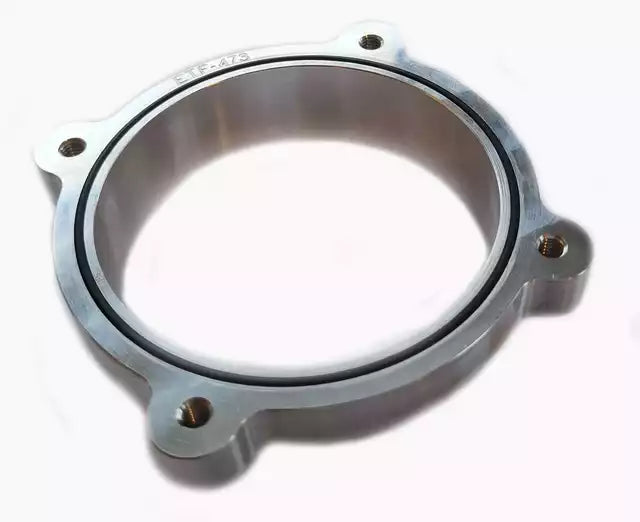

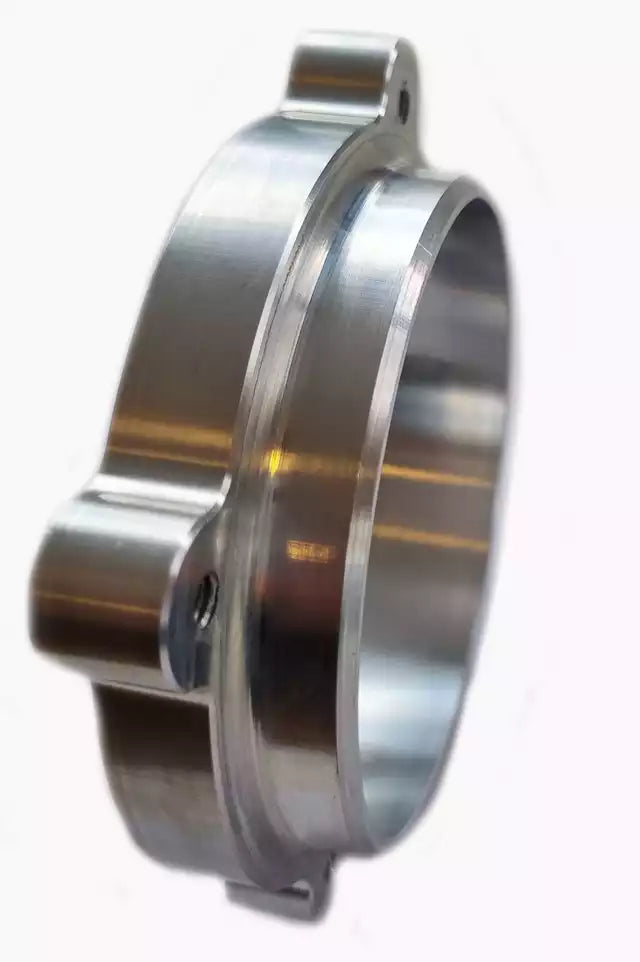

Weld flange for Bosch e-throttle 68mm motorsport
Weld flange in aluminium for Bosch e-throttle 68mm Flange suits to part no: 0 280 750 156
Description
- O-ring sealed flange
- Fits perfect against throttle house
- Highest quality aluminium for best result with welding
ID: 70mm
OD: 76mm

Bosch Motorsport
