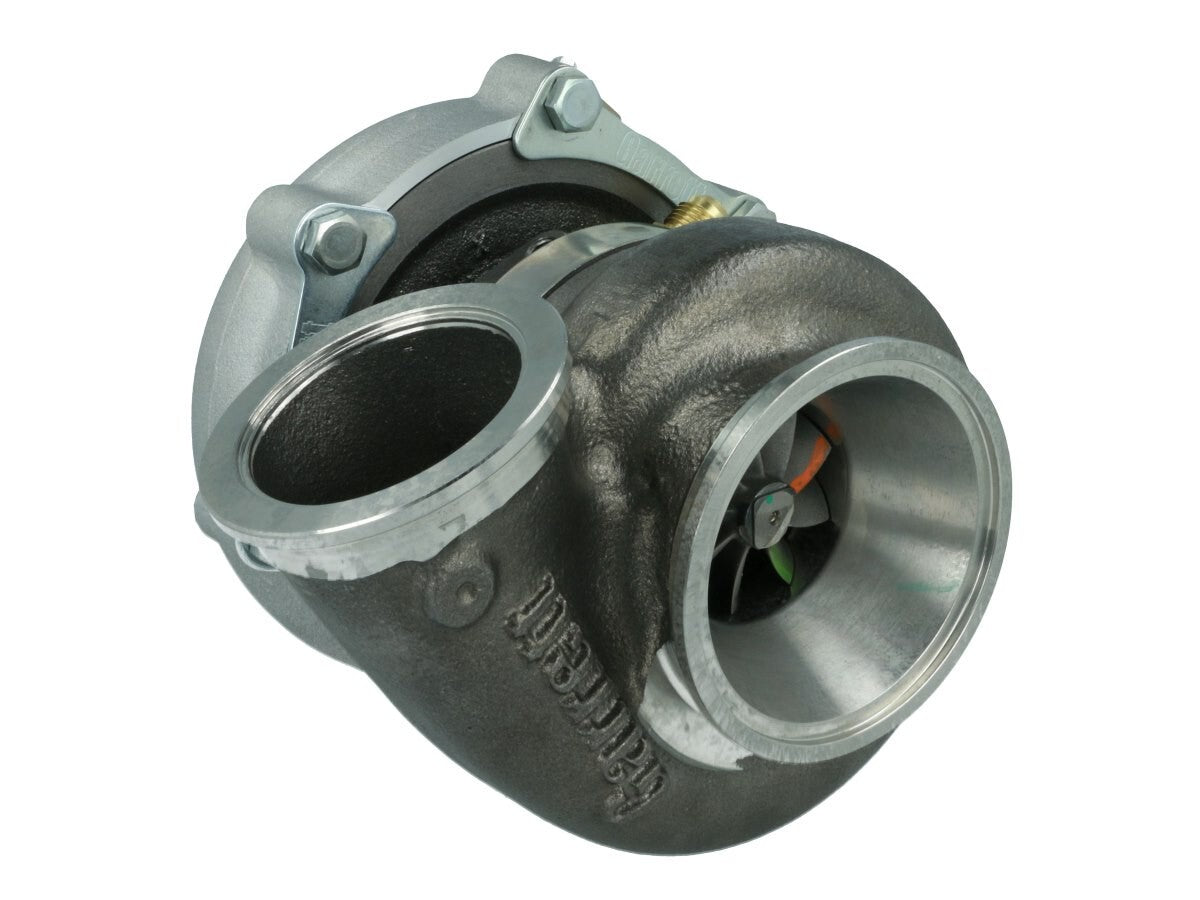

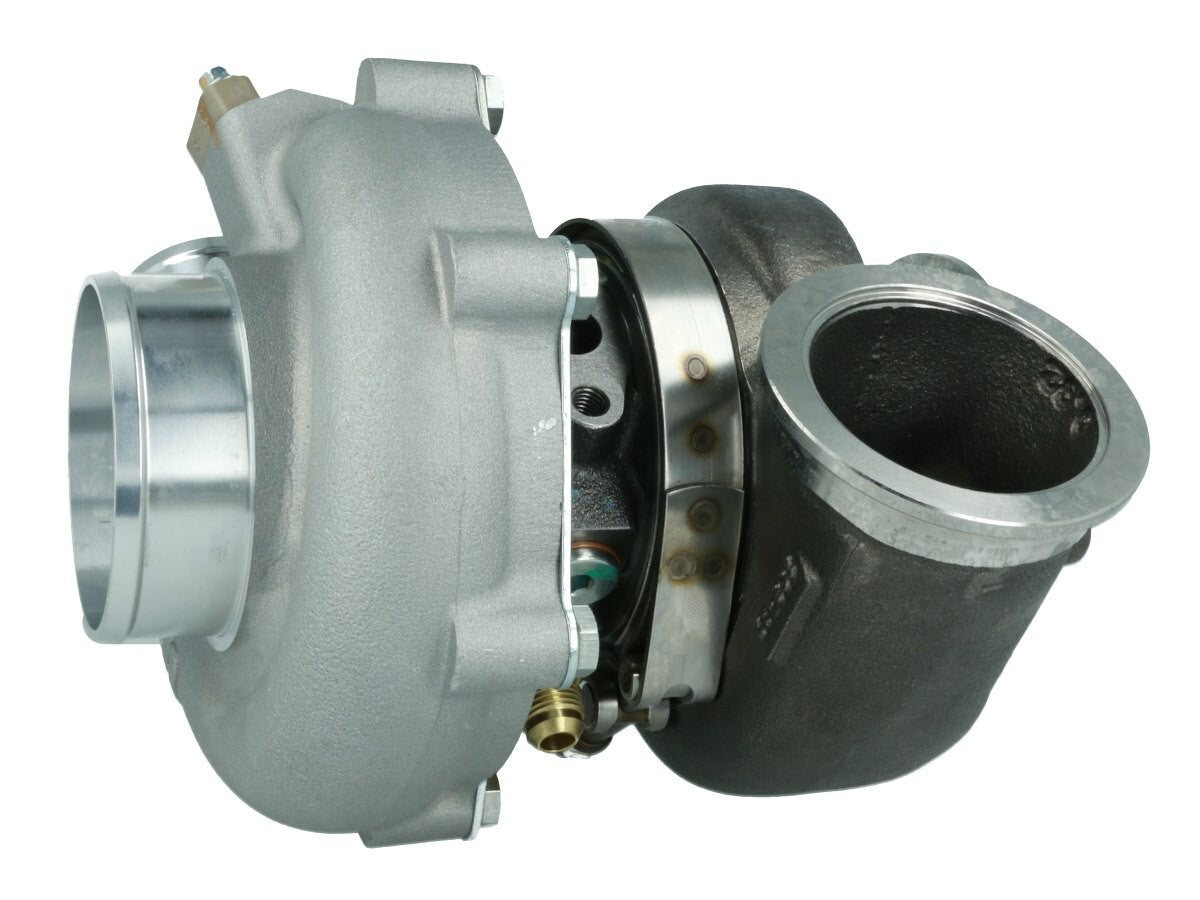

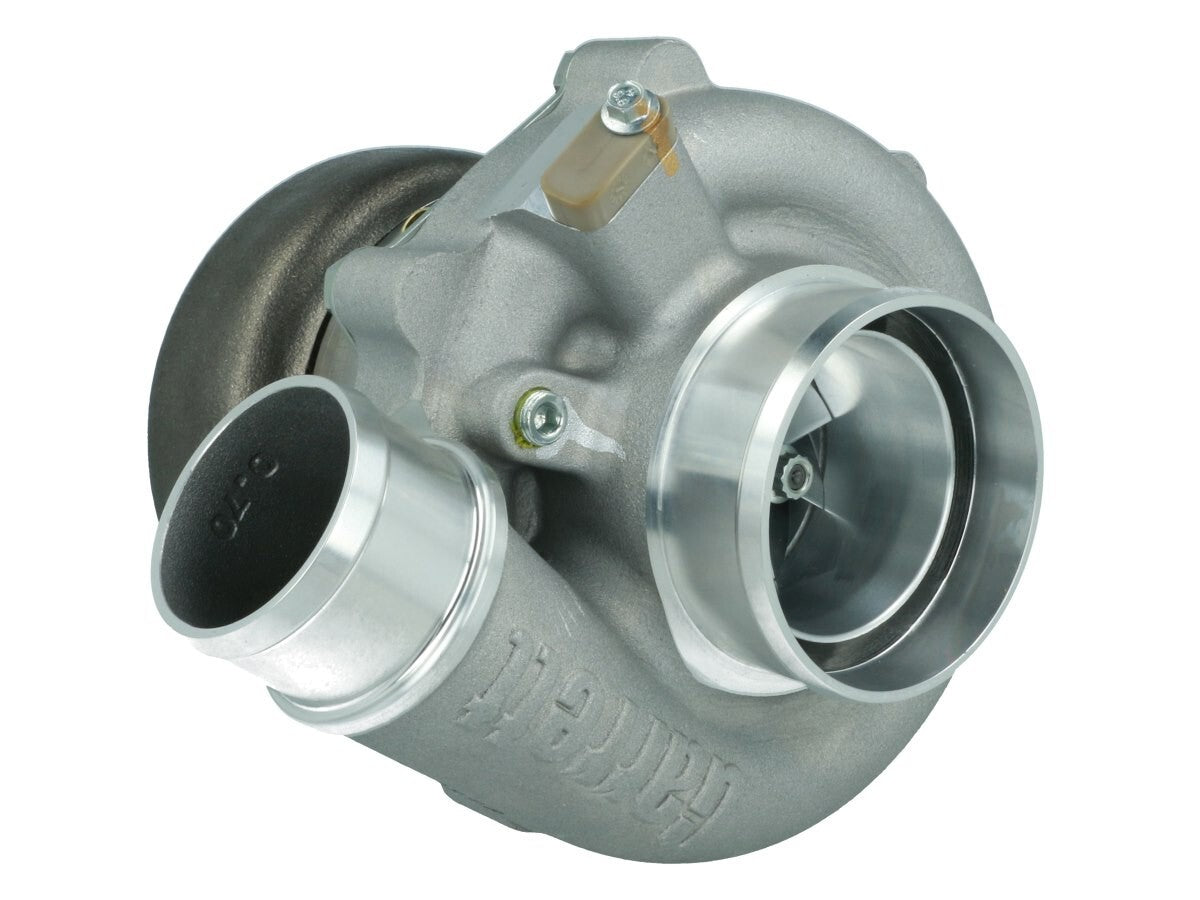

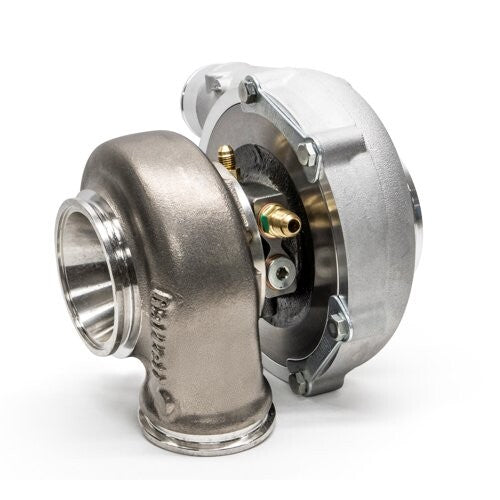

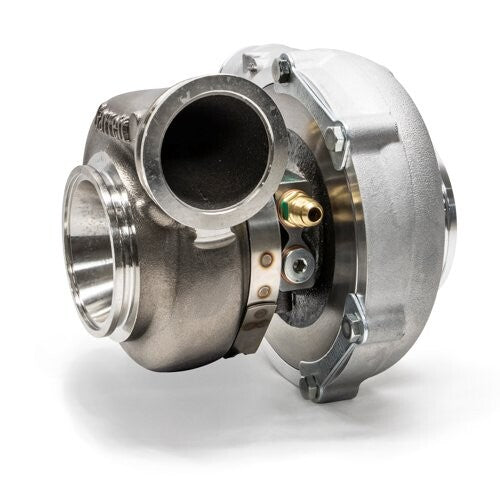

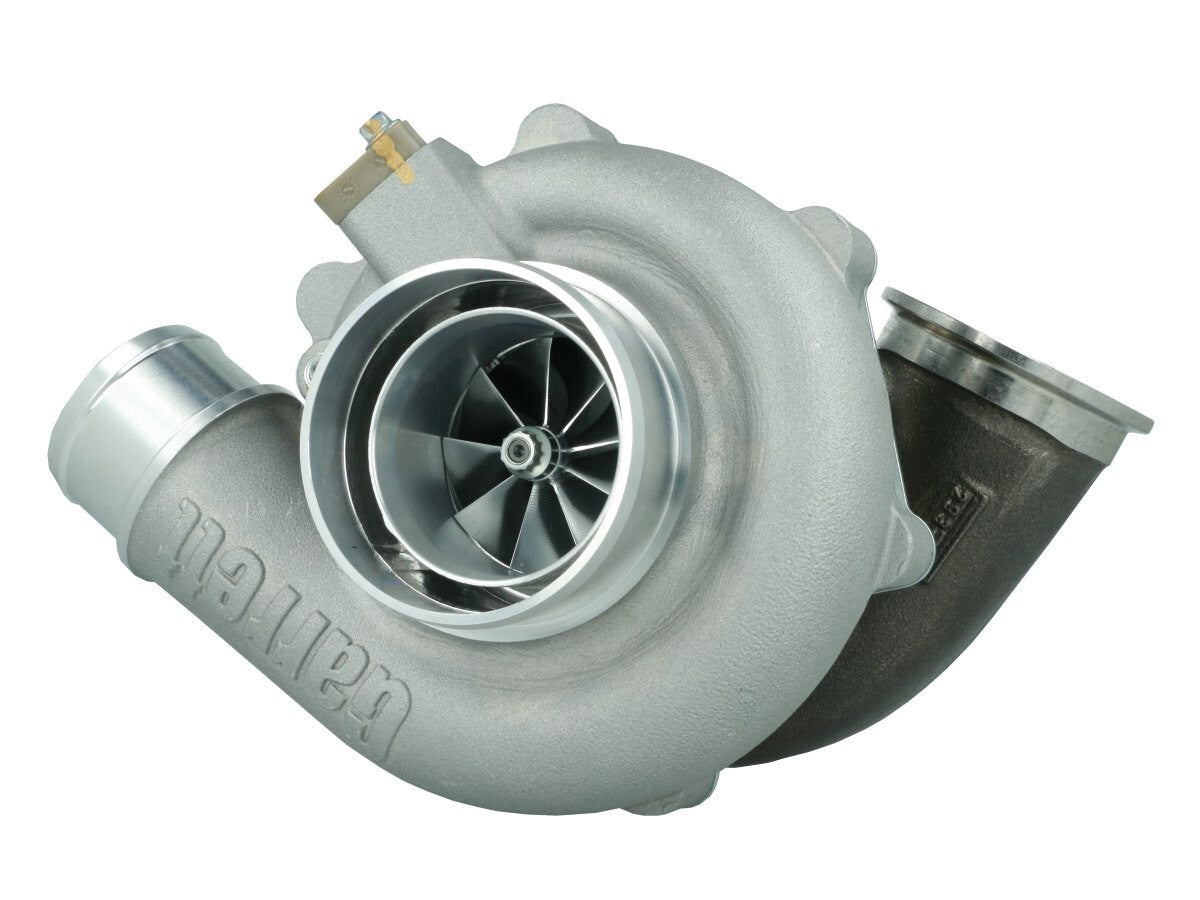

Garrett G25-660 Turbo 0.92 A/R - Dual V-Band - External Wastegate

Garrett G25-660 Turbo 0.92 A/R - Dual V-Band - External Wastegate

Regular price £1,709.99 GBP
Regular price Sale price £1,709.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The newest generation of Garrett turbocharger

A real evolution of the GTX turbos

Garrett now launches a new line of turbochargers that are close to the BorgWarner EFR turbochargers - the G25 series. The special features are:

- Forged and machined compressor wheel of the latest generation with up to 15% more flow (than the GTX series, Gen II series) on 60mm wheels and even 30% more flow on 67mm compressor wheels
- Highflow compressor housing with optional connection for the speed sensor
- Turbine wheel made of Mar-M (up to 1050° C resistant) with 15 to 20% more flow
- Stainless steel turbine housing resistant up to 1050° C
- Exhaust housings with V-band inlet and V-band outlet
- CHRA with V-band to be twisted individually
- Double ceramic ball bearings
- 4 water connection ports
- Double seal on the piston rings
- Right and left rotating turbochargers available.

Power range: Up to 660HP
Engine capacity: 1.4 up to 3.0l

Notice: Rotation is clockwise!
Turbo inlet flange: V-Band
Turbo outlet flange (downpipe flange): V-Band

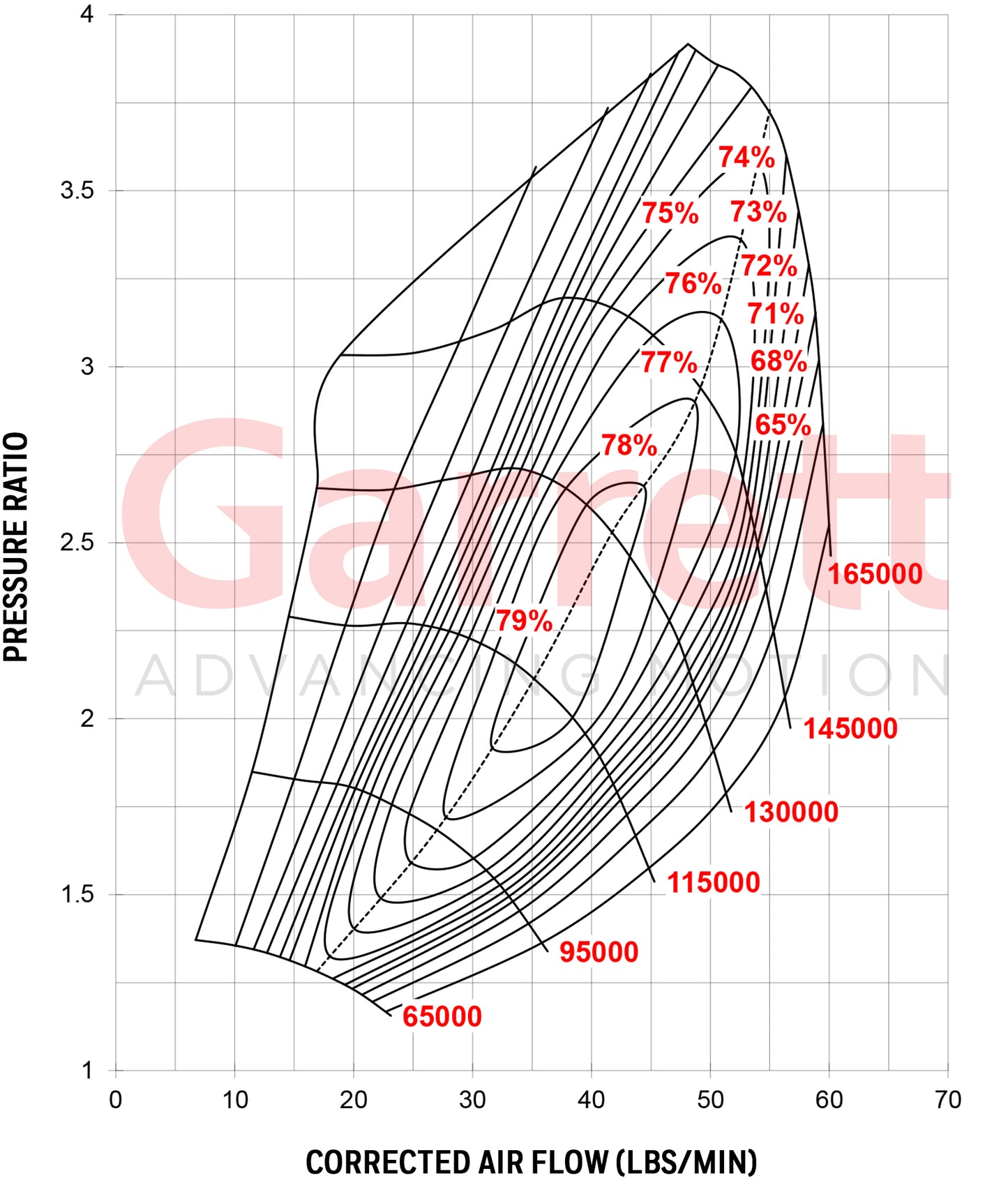

Compressor facts:
Inlet: 54.00mm
Outlet: 67.00mm
Trim: 65
A/R value: 0.70

Turbine facts:
Inlet: 54.00mm
Outlet: 49.00mm
Trim: 84
A/R value: 0,92

Right and left rotation direction:
The absolute novelty of the GTX Gen II turbocharger was naturally adopted in the G-Series. The G-Turbos are also available as reverse rotating turbochargers.


All G compressor wheels are CFD designed, forged and milled from special, high strength aluminum alloys. The new G-Series compressor wheels achieve 15% more airflow on 60mm wheels and 30% more on the 67mm wheels than the GTX Gen II compressor wheels.

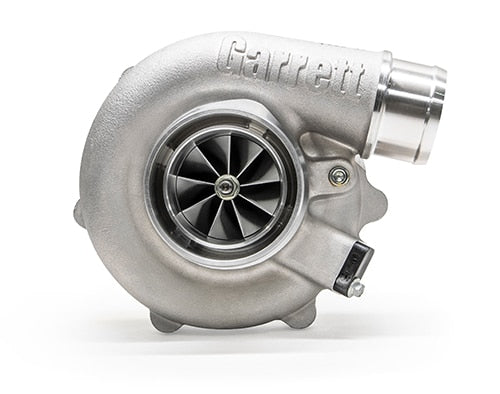

Compressor housing:
The new aero-optimized high-flow compressor housings with integrated mounting for optional speed measuring sensors are adapted to the new G-series compressor wheels. The generation I improved recirculation systems have been adopted in the G-Series and significantly extend the operating range of the compressor by shifting the surge line.

All Garrett G CHRA's are equipped with 4-port water cooling. So 2 connections can be selected on each side. This considerably facilitates the installation of the water pipes and hoses. And of course the G-Series comes with a double ceramic ball bearing like the Gen II. New is the double piston ring seal on both sides.

The new tubrine wheels are made of the high-performance material Mar-M. This material withstands exhaust gas temperatures up to 1050ï¾° C. Here too, 15-20% more exhaust gas flow was achieved with the same wheel dimensions compared to the GTX turbocharger.

Turbine housing:
The exhaust housings are cast from a special stainless steel alloy which also withstands up to 1050° C.

Please note:

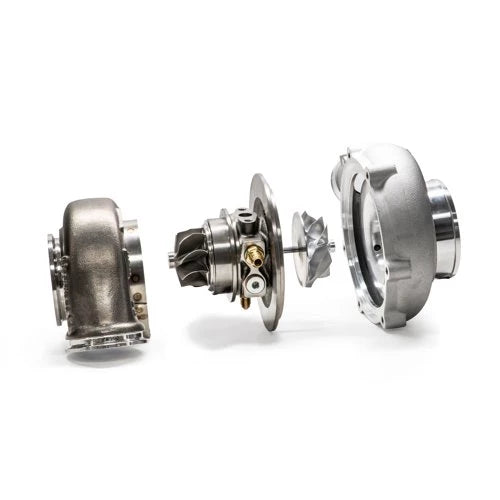

G Series Turbochargers won't be shipped pre-assembled. You will always receive a supercore and housing, and wastegate (if applicable) separately.
