PRL Motorsports High Volume Intake Airbox Honda Civic Type R FK8 17-21
PRL Motorsports High Volume Intake Airbox Honda Civic Type R FK8 17-21
Couldn't load pickup availability

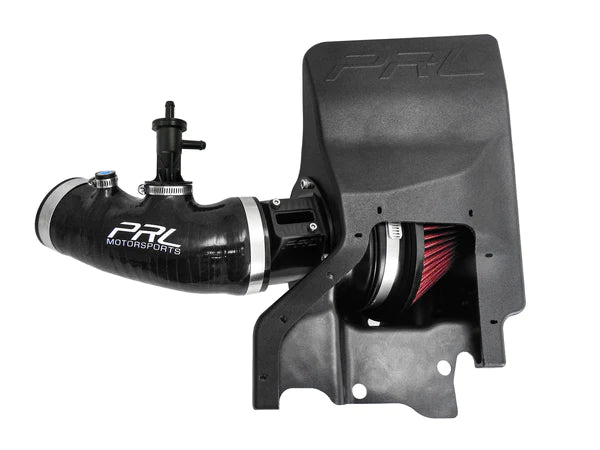

INTRODUCING THE PRL HIGH VOLUME INTAKE AIRBOX SYSTEM

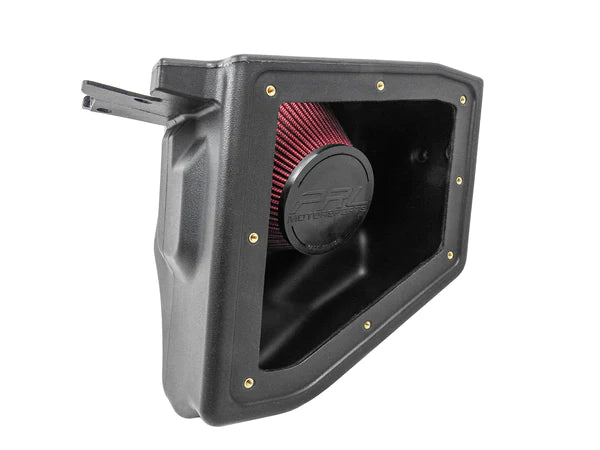

Our FK8 Civic Type-R High Volume Intake system utilizes a 6" cone filter and billet 2-piece MAF housing with velocity stack(s) to allow maximum airflow while delivering proper fuel trims. The HDPE rotomolded air box utilizes the factory air duct and seal for optimal airflow and heatsoak reduction. Custom molded 4-ply silicone allows for all components to be safely attached without obstructing airflow.

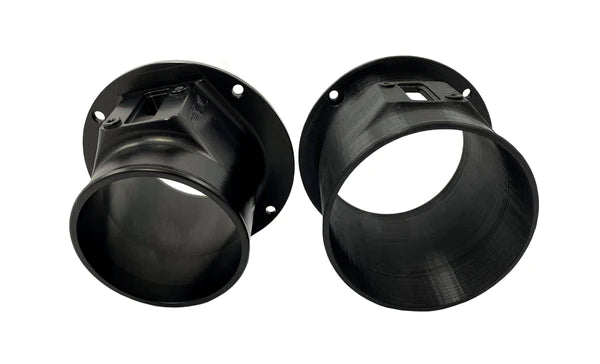

The Race MAF housing option is the largest MAF housing on the market, rated at 600+ horsepower, and offers a 47% increase in airflow volume over the factory MAF housing or "Street" HVI MAF. Our engineers were able to profile the volute and locate the MAF sensor flange in the optimal location to help keep fuel trims extremely stable. This will require a calibration/MAF scaling and is more-so intended for customers looking to make over 450 horsepower.
Important Notes:
- NO ECU CALIBRATION REQUIRED FOR STREET MAF HOUSING
- RACE MAF-SPECIFIC ECU CALIBRATION IS REQUIRED FOR RACE MAF HOUSING

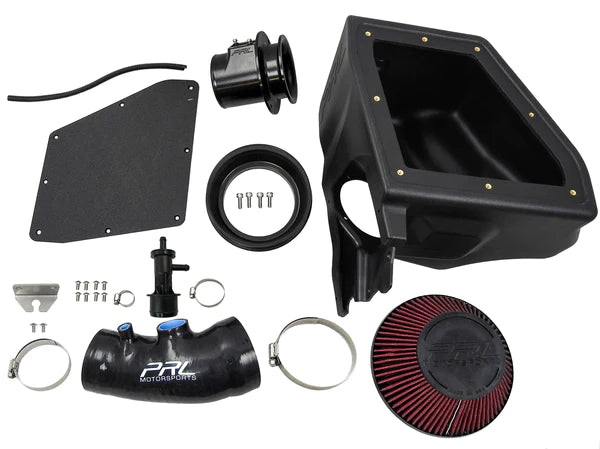

- (1) 4-Ply Silicone Intake Hose
- (1) Evap Flange (Anodized Black)
- (1) Two-Piece MAF Housing
- (1) Rotomold Air Box
- (1) 6" Air Filter
- (4) Stainless Steel Breeze Lined Clamps
- Stainless hardware
- Wire Loom


Next, we uploaded KTuner's Stage 1 ECU map with the factory intake system and our High Volume Intake System. The coolest runs, Run 2, showed an 8-9 horsepower peak gain and 25 horsepower gain throughout the mid-range.
