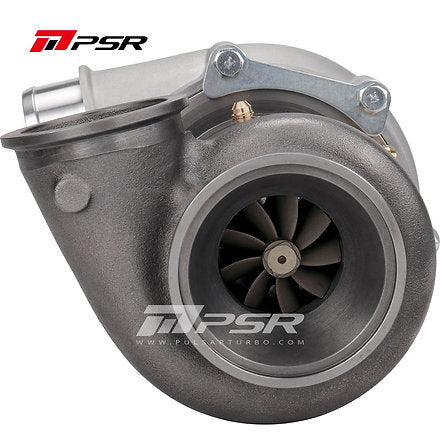

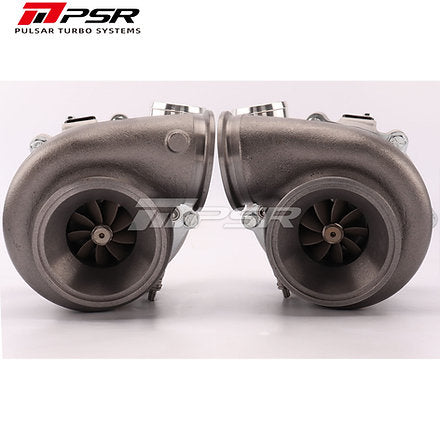

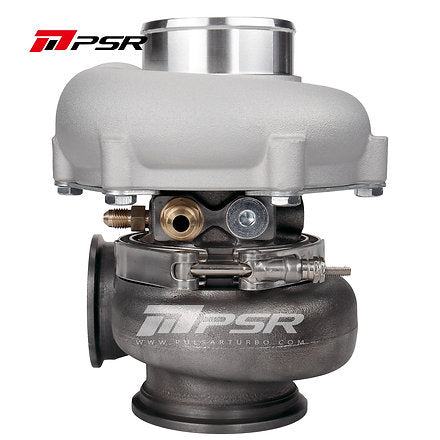

Pulsar PSR5855G / 30-770 - .72 Dual V-Band No WG

Pulsar PSR5855G / 30-770 - .72 Dual V-Band No WG

Regular price £959.08 GBP
Regular price Sale price £959.08 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

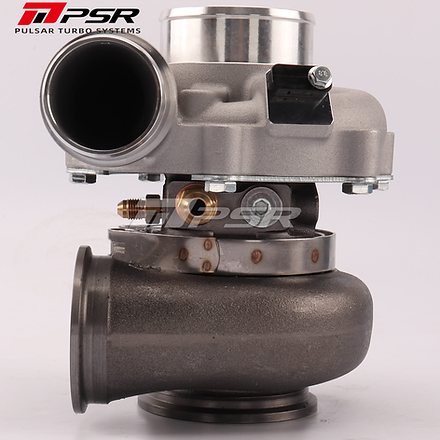

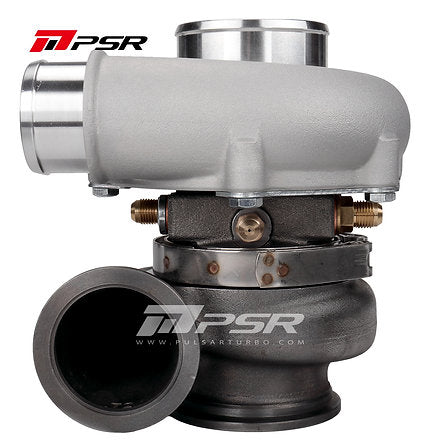

Pulsar PSR5855G

  • Please note, T51R housing option requires an extra 7 days handling time
  • Recommended displacement 2.0 to 3.5 litres with power outputs up to 770hp possible.
  • Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.

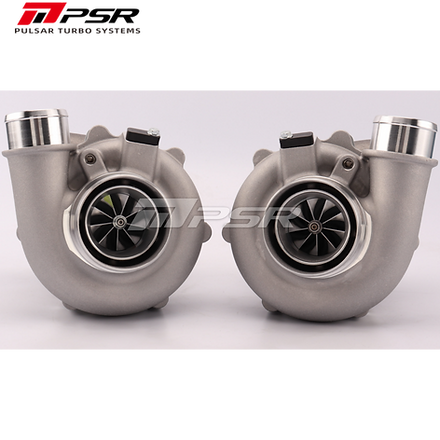

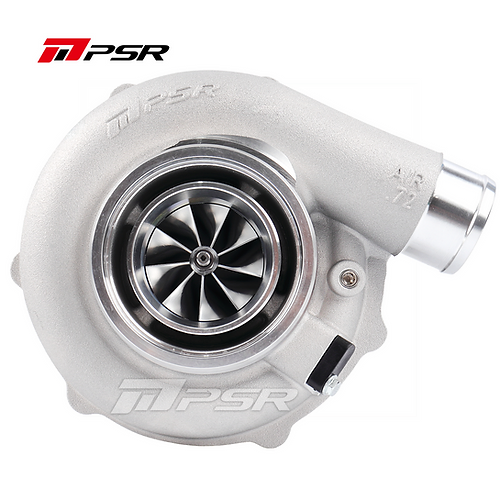

  • 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
  • 9 Blade G-Aero Inconel 713c Turbine Wheel
  • Some IWG housing T flange options supplied with an adapter - please check images.

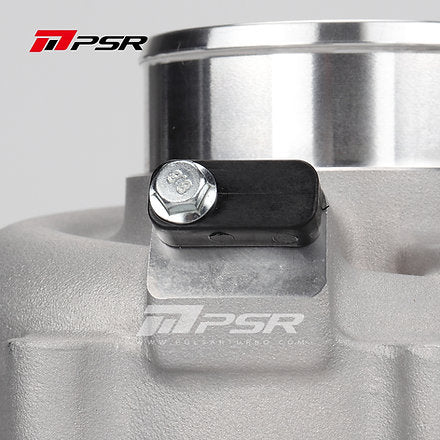

  • Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port


Compressor Wheel: 58*71mm

Turbine Wheel: 60*55mm

Compressor Inlet: 4″ Hose

Compressor Outlet: 2″ Hose

Turbine Inlet: T3 or T4

Turbine Outlet: 3″ V-Band

Water Ports: 2-M14 X 1.5

Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed

Oil Outlet: Std T3 Oil Drain Flange

It's strongly recommended to run water cooling to aid reliability.

Why Not Add Some Heat Protection

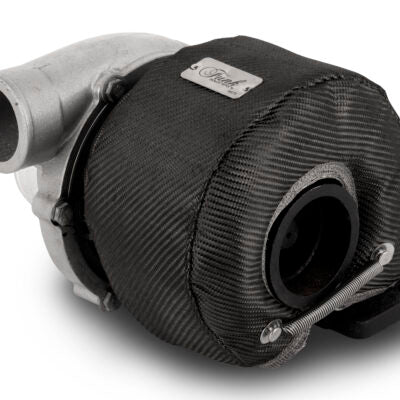

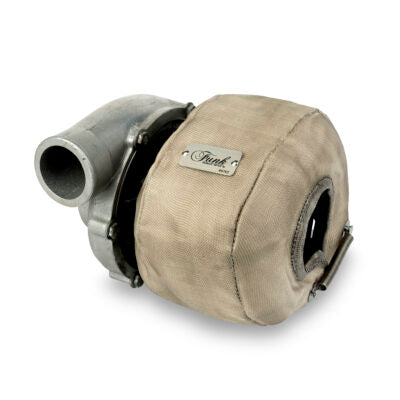

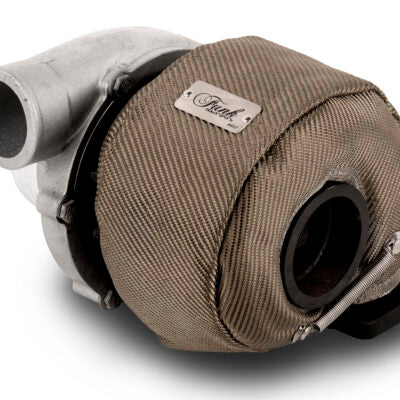

Funk Motorsport Blanket

  • Surface temperature reductions up to 80%
  • Continuous operating temperature: 1000 degrees C
  • Maximum operating temperature: 1200 degrees C
  • Easily removable for maintenance

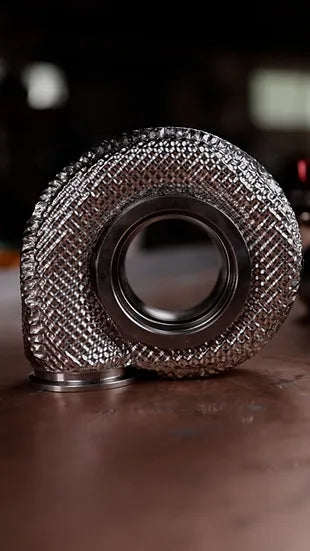

Immico Thermo Immission Control

Fully welded solution using high quality thermal matting with bespoke fabricated dimpled foil casing. This solution provides significant performance benefits with a minimum surface temperature reduction recorded at 75%. With a range of thicknesses available to suit different applications, this can raise to over 90%.

With advanced welding techniques and high quality dimpled casing this increases the life cycle of the insulation making it a fit and forget product with high performance.

*Please allow for an additional 2-3 weeks for Immico Thermo Immission Control
